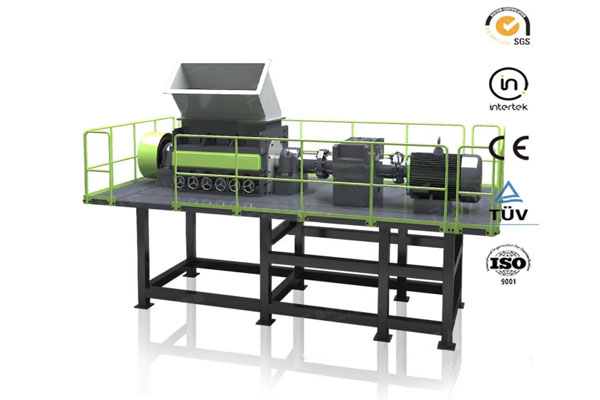

Rasper

Product model: LYRR

Type: Shredding Equipment

Material: Provide customized services, a variety of materials to choose from

Color: Customized service available

Brand: Langye


Details of Rasper

Product Description

Rasper crusher is designed for waste tire recycling and is a key equipment in the entire tire recycling production line. It can crush the pre-processed tire rubber blocks into 10-30mm particles, while efficiently separating steel wire and rubber, creating double economic benefits for users.


Product Advantages

High wear resistance

The rotor is made of high-strength, wear-resistant materials to ensure extended service life and reduced maintenance costs.

Flexible production

Equipped with a variety of screen options with different apertures, the output size can be adjusted from 10mm to 30mm to meet different needs.

Easy maintenance

Replaceable blades and screens minimize downtime and improve operational efficiency.

Intelligent structural design

The internal wear-resistant liner is easy to replace, no maintenance welding is required, and the normal operation time of the machine is significantly increased.


Product Parameters

ModelFTRR-315FTRR-135FTRR-90FTRR-75
Power315kw135kw90kw75kw
Voltageas per request
Cutting Chamber700*1500mm640*1200mm550*1000mm550*800mm
Dimension6220*2170*3560mm4110*2010*2560mm4100*2090*2180mm4100*1990*1980mm
WeightApprox 24000kgApprox 13500kgApprox 9200kgApprox 8500kg
Hopper Opening1730*880*910mm1410*910*1410mm1190*710*1250mm980*700*1260mm
Final Product10-30mm

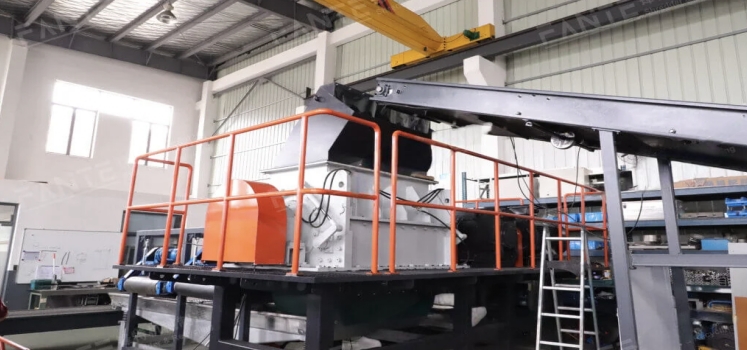

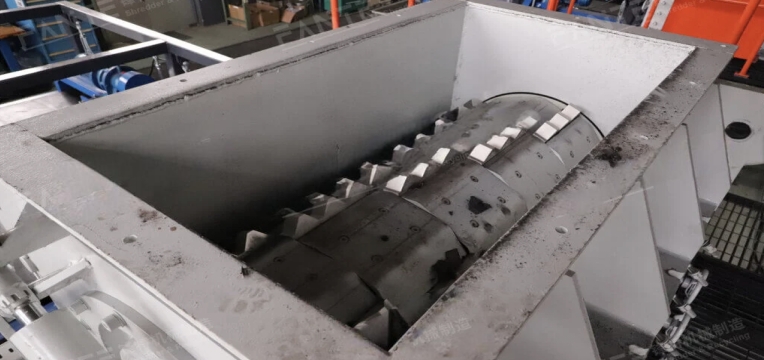

Product Actual Pictures





Products

Need a quotation? Want to know more about our sheet metal manufacturing products? Fill out the form

below and our team will get back to you within 24 hours.

What you'll get：

  • Receive custom equipment solutions and pricing.

  • A professional consultant will reply within one working day.

  • Get a free equipment selection guide and success stories.

  • Inquiring customers enjoy equipment discounts.

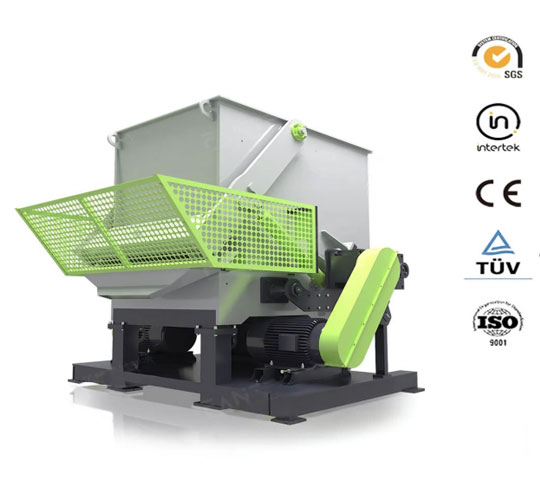

Related Single Shaft Shredder
