Name: LYE-H 50 Ton / 200 Fully Electric Horizontal Bending Machine
Brand: Ma'anshan City Langxi Heavy Industry Machinery Technology Co., Ltd.

Details of LYE-H 50 Ton / 200 Fully Electric Horizontal Bending Machine

Product Specifications

Nope	engineering	LY-H 20/200	LY-H 30/200	LY-H 40/200	LY-H 50/200	LY-H 63/200
1	stress	60 thousand cattle	300 thousand cattle	400 thousand cattle	500 thousand cattle	630 thousand cattle
2	Table length	200 mm	200mm	200mm	200mm	200mm
2	Sliding stroke	150 mm	150mm	150mm	200mm	200mm
3	Turn on height	420 mm	420mm	420mm	470 mm	470mm
4	backgauge travel	800 mm	800mm	800mm	1000 mm	1000mm
5	Slider speed	0-100 mm/s	0-100mm/s	0-80 mm/s	0-100mm/s	0-100mm/s
6	Main motor	5.5 kilowatts	7.5 kW	7.5KW	11 kW	15 kW
7	Machine weight	1550 kg	1720 kg	2100 kg	2370 kg	2580 kg

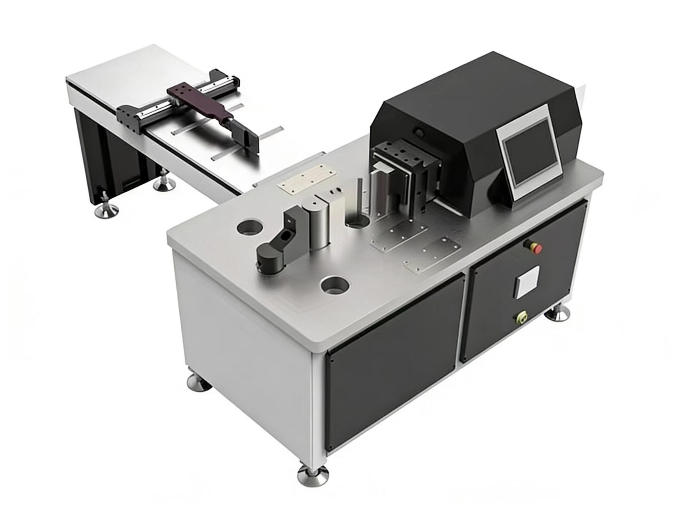

Product features and technical advantages

Compact size

Structure calculation

high-precision machining

servo drive

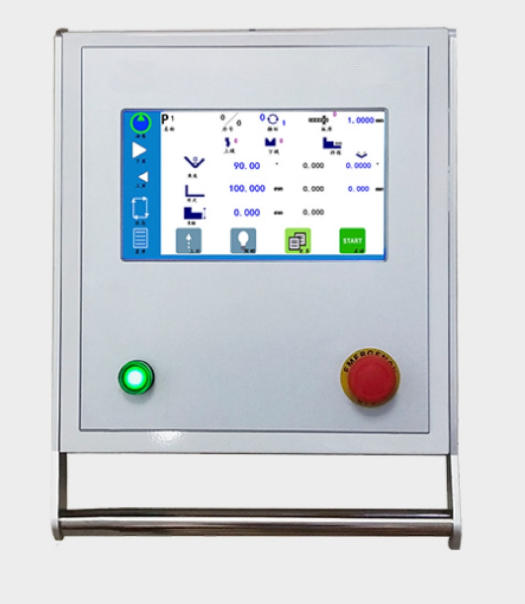

CNC control

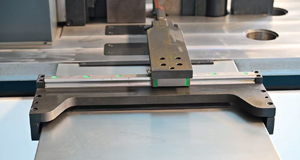

CNC backgauge

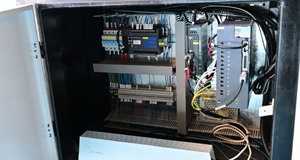

Control system - ECO-10ES

1. Energy saving and high efficiency: pure electric servo drive, significantly saving power and achieving oil-free and environmentally friendly operation.

2. High precision: The machine achieves 0.01mm positioning accuracy, fast response speed, and superior bending quality.

3. Low maintenance cost: The absence of a hydraulic system means zero leakage risk and eliminates the cost of replacing oil and seals.
4. Smart design: Compact horizontal structure, equipped with CNC touch screen control, optimized for efficient busbar processing.
