Name: Large Copper Wire Granulator
Brand: Ma'anshan City Langxi Heavy Industry Machinery Technology Co., Ltd.

Details of Large Copper Wire Granulator

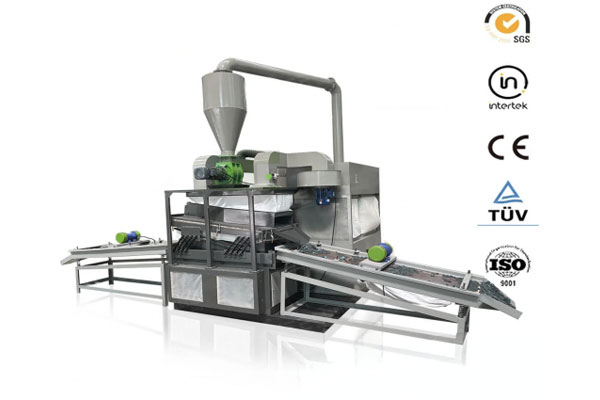

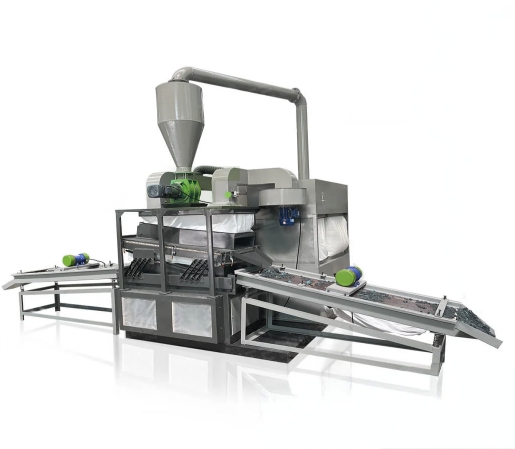

Large Copper Wire Granulator

The copper wire granulator is an innovative and essential piece of equipment in the world of metal recycling. These machines play a vital role in converting scrap copper wire into a valuable resource, making it highly sought after by various industries. The copper wire granulator is designed to efficiently process and recycle all types of copper wire and cable, regardless of their condition. It can handle everything from tiny wires to thick cables. The granulation process involves stripping the insulation off the copper wire and then crushing the copper into granules or small pellets.

Product Description of Large Copper Wire Granulator

The copper wire granulator is a precision machine designed for efficient processing of scrap copper wire. This copper granulator machine for sale is equipped with several key features and components to ensure optimal performance and copper recovery:

1.Feeding system: The large copper wire granulator is usually equipped with a powerful feeding system to handle various types and sizes of copper cables. Designed to handle both insulated and uninsulated wires, the system is versatile and can meet different recycling needs.

2. Cutting mechanism: Inside the large copper wire granulator , a powerful cutting mechanism cuts the copper wire into smaller pieces. This process is essential for the further preparation of the copper wire for granulation.

3. Pelletizing chamber: After the wire is cut into small segments, it enters the pelletizing chamber. Here, sharp blades further pulverize the material into copper particles or fine particles. The size of the particles can usually be adjusted according to specific needs.

Shredding effect

Shred Effect of Large Copper Wire Granulator

arge-copper-wire-granulator4

Product Parameters of Large Copper Wire Granulator

Model	FTG-600	FTG-800	FTG-1000
Total Power	42.19kW	67.24kW	105kW
Output	400-700kg	600-800kg	700-1000kg
Applicable	0.1-30mm cable
Equipped with a double-shaft shredder, the maximum wire processing diameter can reach 50mm
Weight (kg)	3450kg	6200kg	10000kg
Application	The cable copper sheath and sheath should be worn separately
Aspect	370019002200mm	760068002200mm	1000070002800mm
