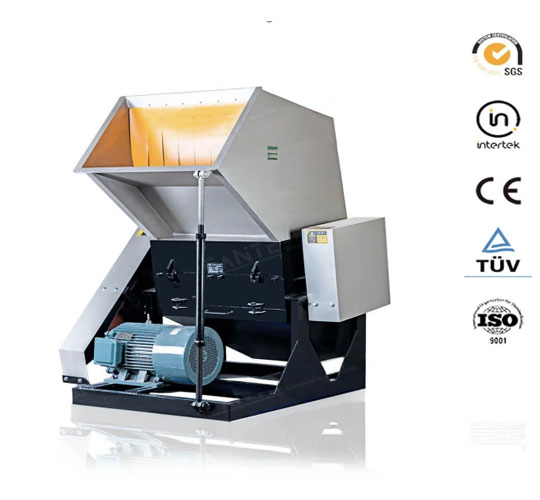

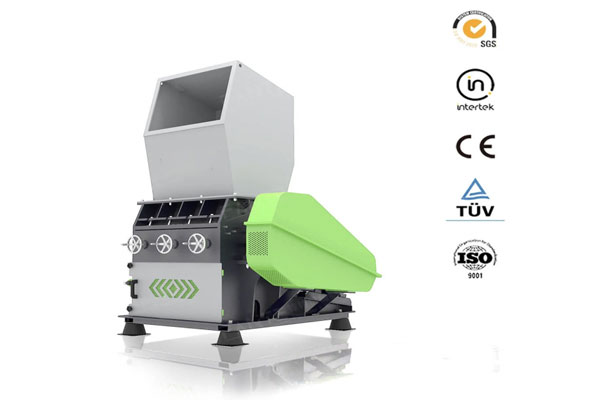

Heavy Duty Crusher

Product Mode：LYC-H

Type: Crushing Equipment

Material:Provide customized services, a variety of materials to choose from

Color:Custom services are available

Brand:Langye


Details of Heavy Duty Crusher

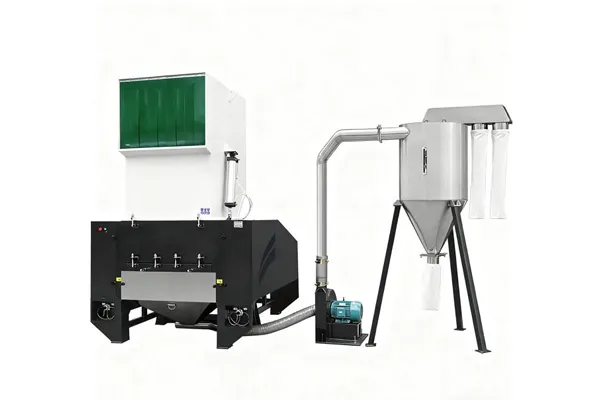

Heavy-duty crusher


Fendt's proud crusher is a high-performance crusher designed specifically for the environmental machinery industry. Whether it is plastic, paper, wood or metal, our crusher can efficiently and thoroughly crush it to the required particle size to meet the processing needs of different industries. Our crusher adopts advanced blade design and powerful power transmission system, with excellent crushing capacity and excellent production efficiency. Its sturdy structure can handle a large amount of hard materials and is suitable for industrial production lines and waste treatment sites.


Product Description

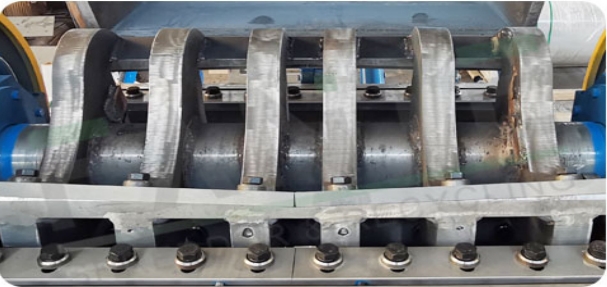

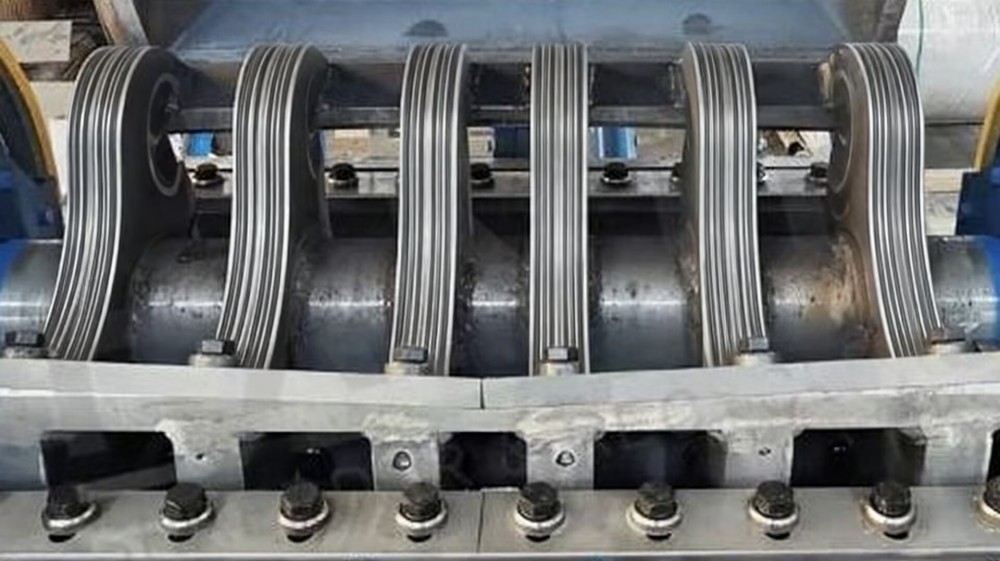

  • Made of high-strength materials, our spindle rotors are built to withstand the toughest challenges and perform well under heavy loads. Their superior strength ensures a long service life, minimizing the need for frequent replacement and reducing operating costs.




  • We offer a range of external bearing housing options to suit a wide range of machinery and industry needs. Whether you require a bearing housing for a heavy-duty application or specialized equipment, our products can be tailored to your specific needs.

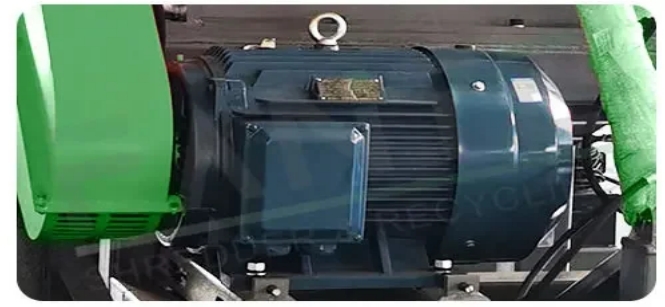

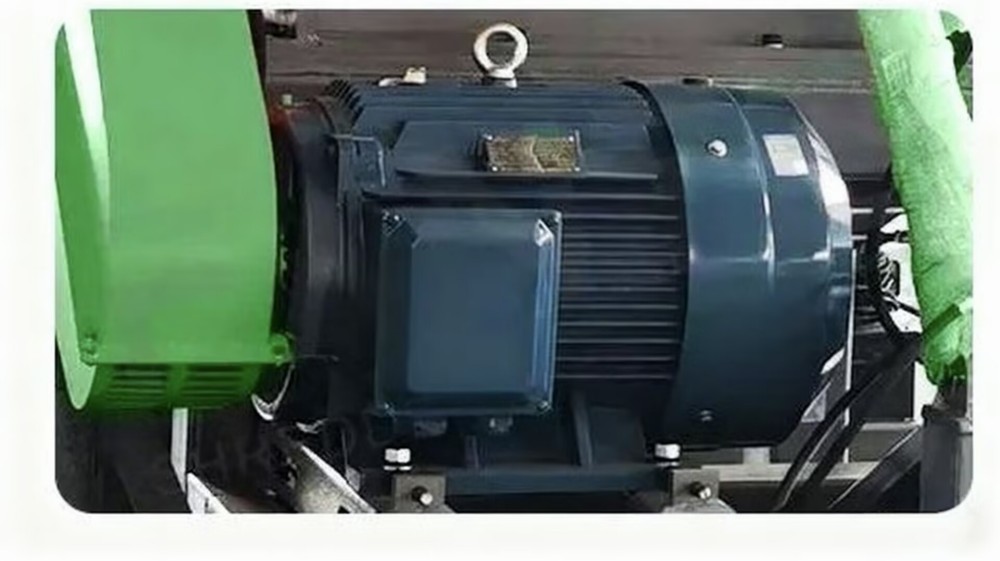

  • Our motors are versatile enough to accommodate a wide range of applications. Whether you need a motor for heavy machinery, manufacturing equipment, or other industrial processes, we can provide a custom solution to meet your specific needs.




Shred effect


Product Parameters

ModelFTCH-600/350FTCH-800/450FTCH-1000/600FTCH-1200/600FTCH-1400/800FTCH-1600/800
Motor22kw37kw55/75kw75/90kw132/160kw160kw
Rotating Speed580rpm580rpm520rpm520rpm480rpm480rpm
Rotating Blades6610*1410*141414
Fixed Blades244444
Rotating Diameter350mm450mm600mm600mm800mm800mm
Feed Opening450*600mm530*800mm800*1000mm800*1200mm1400*1400mm1600*1600mm
Screen Dianmeter10-50mm10-50mm10-50mm10-50mm12-50mm12-50mm
Capacity200-400kg400-600kg800-1200kg1000-1500kg2000-2400kg3000-3500kg
Hydraulic Power/1.5kw1.5kw1.5kw3kw3kw
Weight1800kg3100kg4500kg5500kg12000kg14000kg
Dimension1650*1370*19502000*1750*31502300*1950*33502300*2150*33503500*2500*50003860*2650*5380

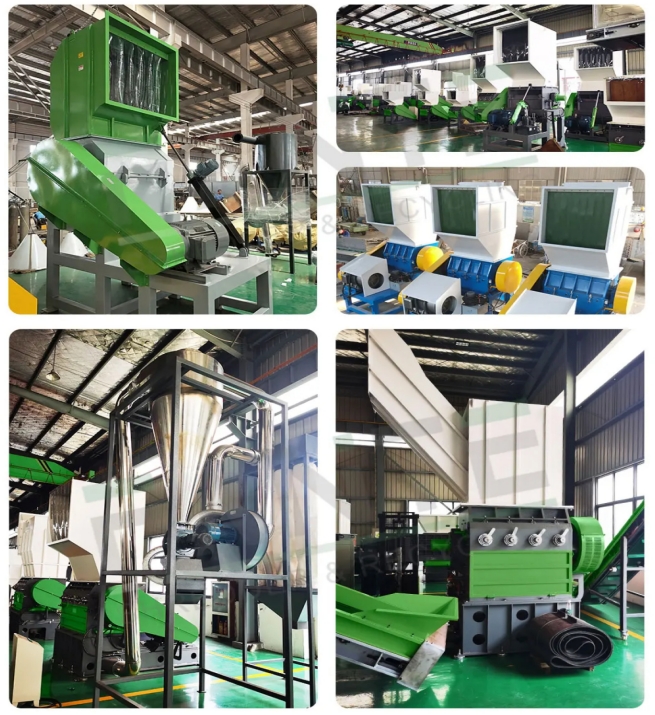

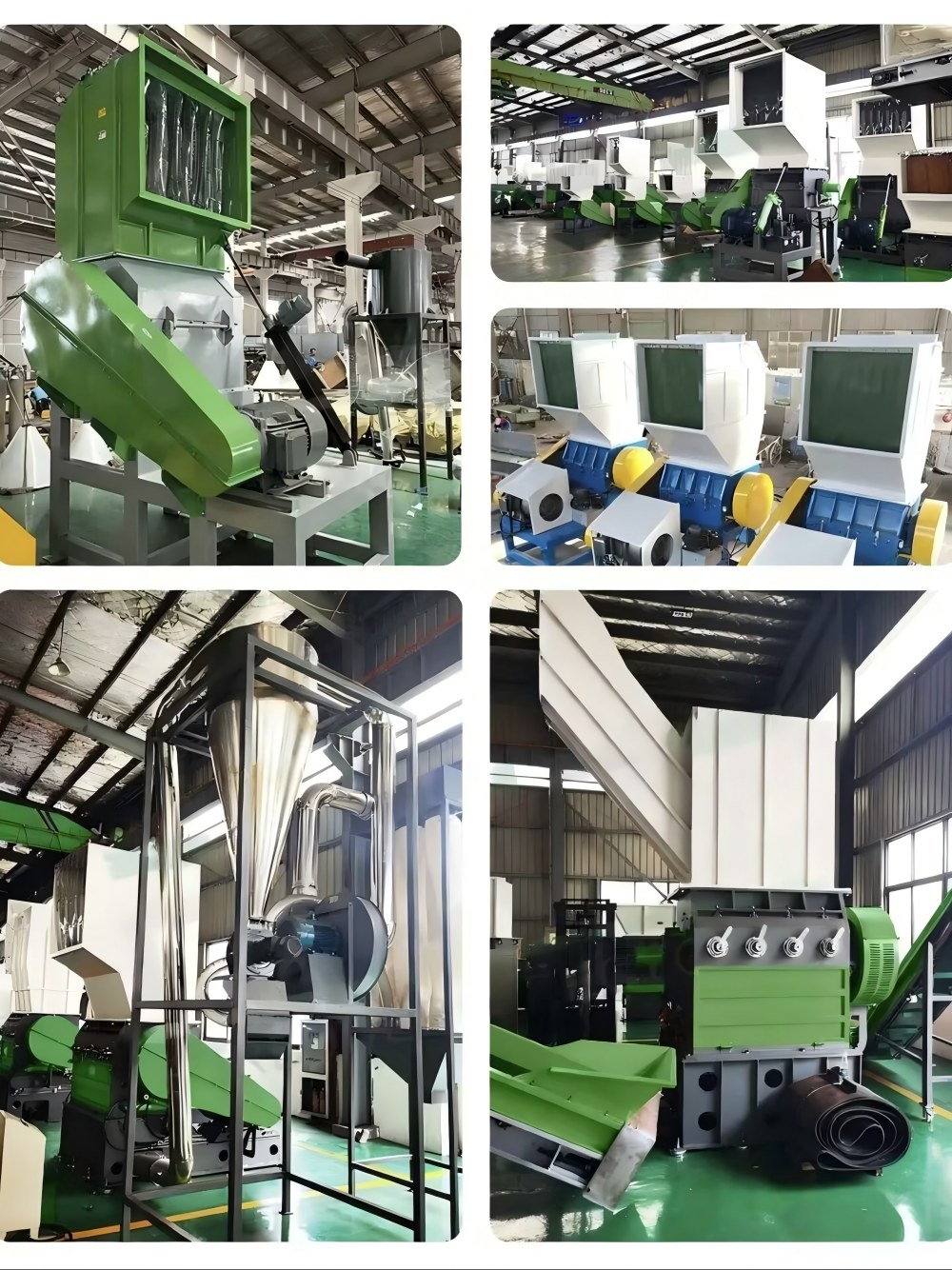

Product Actual Pictures
